SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Voltage: 110-240V

Model Number: Smart Curtain Switch

Choice: yes

Specifications:

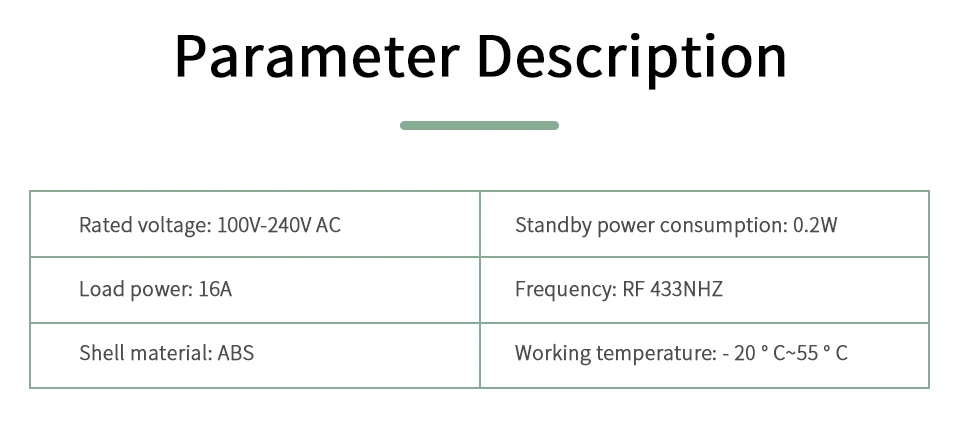

Curtain Module parameter

Input Voltage: AC 100V~240V

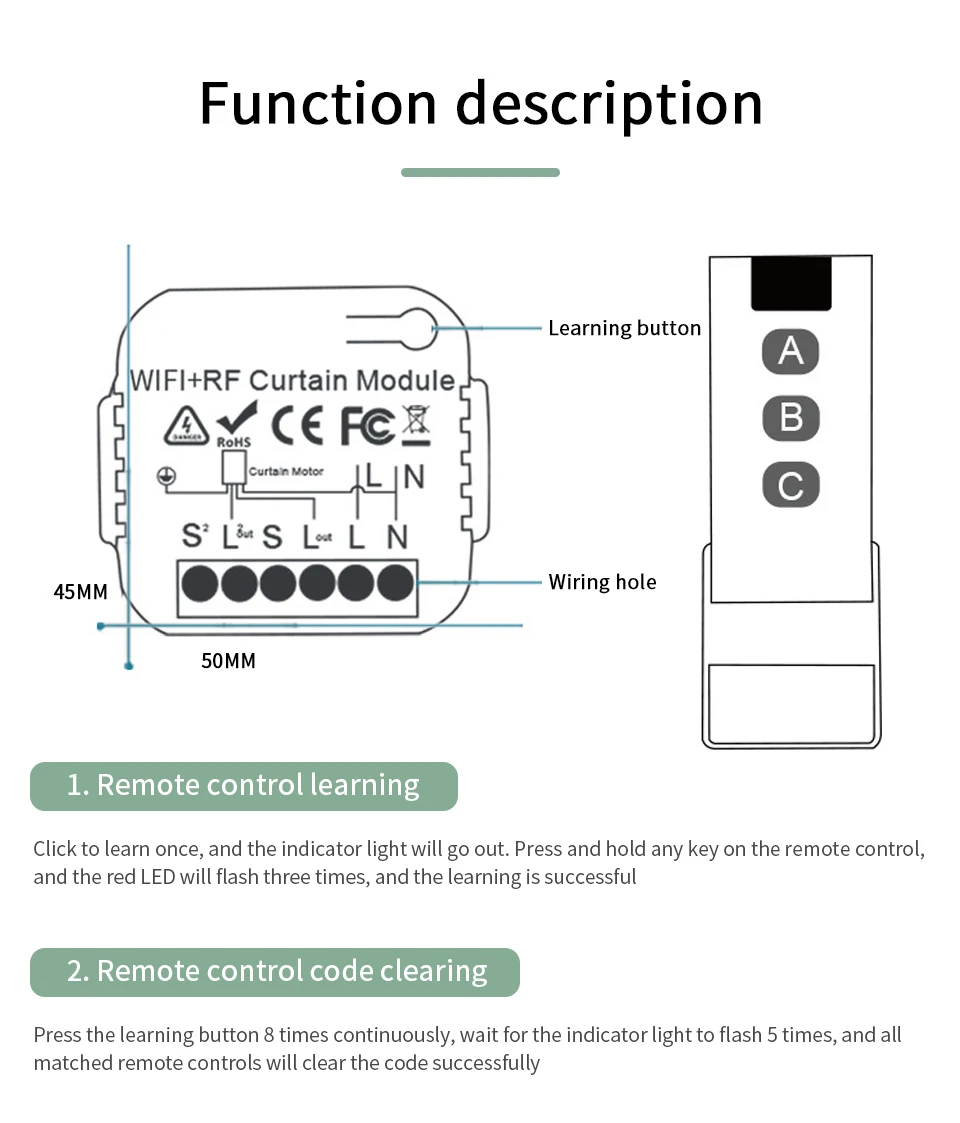

Size:45*45*20 mm

RF Frequency: 433MHz

WIFI: IEEE 802.11 b/g/n

Max current:  16Amp

Receiving Sensitivity: >97dbm

Color:  White (Outside Shell)

RF Remote parameter

RF frequency : 433MHz

Size:110*38.1*15mm

Support encoding : 1527 Leaning code

Remote distance : up to 70 meters (theoretical distance)

Battery  :  23A 12V( Battery include )

Screw:  Include

Base:  Include

Features:

1: 50Meters Long Range Wireless Control:

--No need mobile phone control, Realize 70 meters long-distance control of curtains or electric projection cloth to open or close.

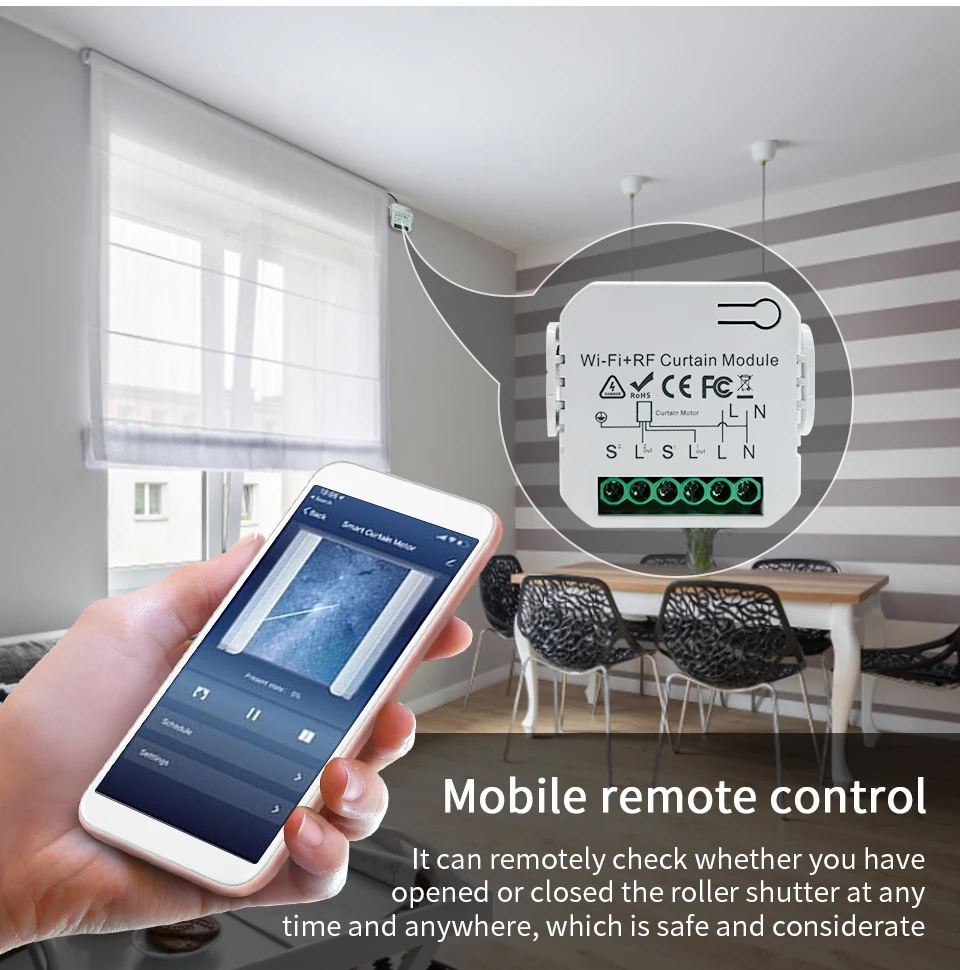

2: Tuya Smart phone APP Remote Control:

--Enable to remotely control your connected appliances on your smart phone wherever you are. WIFI Networks provides the needed connection to the DIY Switch Module without the need of a separate HUB.(Compatible with Android&iOS.)

3: Intelligently control the magnitude of curtain closing.

--Without looking at the curtains, you can control the degree of closing or opening at will, and directly use the mobile phone to control the curtains to open half or one-third of the way.

4. Voice Control:

--Compatible with Amazon Alexa and Google Home for easy voice control,providing your smart life for controlling roller blinds with much more convenience.

5. Timer and Countdown Control:

--Take full control of your roller blinds intelligently with the timer feature on your App,which enables to open / close them at a specific time automatically. Automate your home roller blinds via 3 timing types:schedules timing,countdown timing and loop timing.

Notes:

1.On your first using, please control your curtain up and down completely(100%) to let switch and APP remember your curtain longness. If you find up and down are reversed on remote or APP, please check your connection .Maybe you are reversed the line.

2.This module is wifi+rf , remote is rf only.

3.The module and remote are a set product. They cannot use indivually.They cannot work with other products in our store or other brand.

4.Working voltage is AC 100-240V,needs L and N line.
